Machine Features:
- The machine's internal mechanism and working parts are made of aluminium and stainless steel.
- Control system by PLC high accuracy and adjusting range.
- Compatible with various filling system.
- Simple and user friendly machine.
- Low maintenance and low operating cost.
- Digitally indicating the size of the film, speed of wrapping, output and temperature.
- Material: small granular and powder
- Auto-counting function
- The temperature can be controlled independently. it is suitable for any kinds of packing quality.
- Sealing Mode: Three -Four sides sealing
- Make notch, easy open
- Barcode and expiration date print equipment
- Metallic gray coloured and the surfaces of the machine that are in contact with the product are made of stainless.
Optional Equipment:
- Secrew Elevator for automatic continious feeding.
- Product counter and stacking belt conveyor
- Special pattern notch unit
- Line notch unit
- Extra auger and tube group
- Date, serial number coding group - cold print
- Date, serial number coding group - hot print
|
Technical Parameters:
|
RFMH160L
|
RFMH250L
|
|||
|
Sachet Dimension (witdhXLeght)
|
min
|
60*60 mm
|
80*120 mm
|
||
|
max
|
120*160 mm
|
160*250 mm
|
|||
| Production Capacity (sachet/min) | 80 sachets/min | 50 sachets/min | |||
| Weight | 800 kg | ||||
| Electrical Data | 2 KW/h 220/380 Volt, 50/60 Hz | ||||
| Packing Metarial | Aluminum Foil, OPP+OPP, OPP+PE, Metallised+AL+PE | ||||
| Air requirement | 5 atu, 100Lt/min | ||||
| Dimensions | L: 3,00 cm x W:1,00 cm xH: 2,50 cm | ||||
| Colour | Metallic gray coloured and the surfaces of the machine that are in contact with the product are made of stainless. | ||||
| Electric Equipment to be used |
|||||
| Contactor and Fuses |
Siemens |
||||
| Inverters | Telemechanique | ||||
| Reducers to be used in the machine |
Yilmaz Reducer |
||||
| Hard Chromium shafts |
German made UNK |
||||
| Stainless quality to be used |
316-304 | ||||
*The specifications and details are subject to change without prior notice.

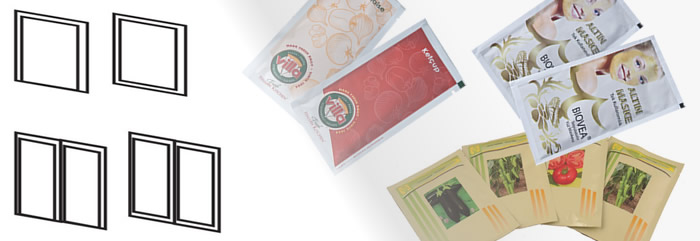

Machine packed into these types of bags:
